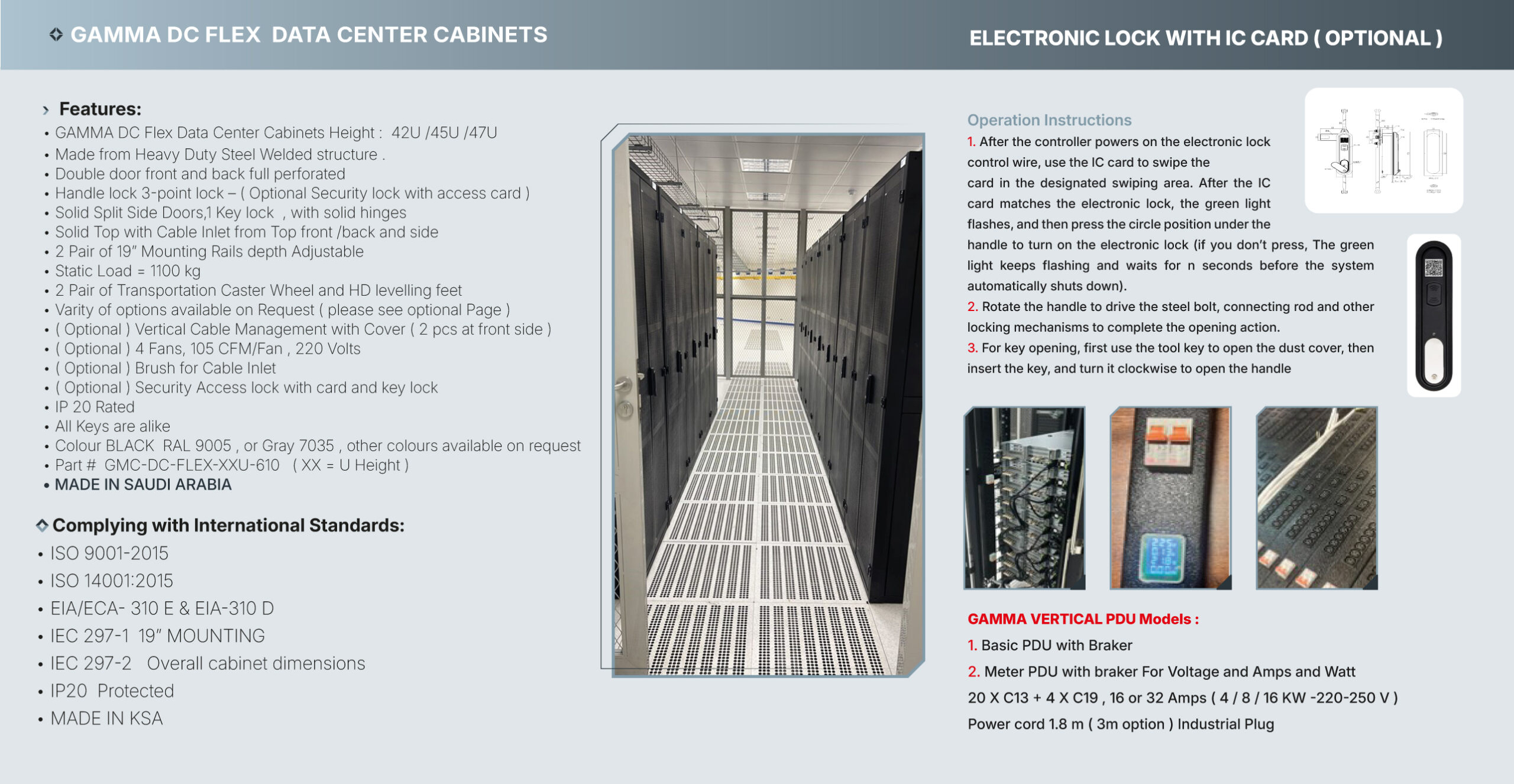

GAMMA DC FLEX DATA CENTER CABINETS (42U-45U-47U) 600 X 1000
| # | Part Number | Description – Standard Configuration – Colour Black RAL 9005 (Welded Structure) | Width (W) mm | Depth (D) mm | Height (H) mm | Depth Rail to (Rail) mm | Static Load (KG) | Download |
|---|---|---|---|---|---|---|---|---|
| 1 | GMC-DC-FLEX-42U-610 |
Gamma DC Flex Data Center Cabinets 42U 600×1000 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
600 | 1000 | 2020 | 900 | 1100 | Download |
| 2 | GMC-DC-FLEX-45U-610 |
Gamma DC Flex Data Center Cabinets 42U 600×1000 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
600 | 1000 | 2160 | 900 | 1100 | Download |
| 3 | GMC-DC-FLEX-47U-610 |
Gamma DC Flex Data Center Cabinets 42U 600×1000 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
600 | 1000 | 2250 | 900 | 1100 | Download |
GAMMA DC FLEX DATA CENTER CABINETS (42U-45U-47U ) 600 X 1200
| # | Part Number | Description – Standard Configuration – Colour Black RAL 9005 (Welded Structure) | Width (W) mm | Depth (D) mm | Height (H) mm | Depth Rail to (Rail) mm | Static Load (KG) | Download |
|---|---|---|---|---|---|---|---|---|
| 1 | GMC-DC-FLEX-42U-612 |
Gamma DC Flex Data Center Cabinets 42U 600×1200 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
600 | 1200 | 2020 | 1100 | 1100 | Download |
| 2 | GMC-DC-FLEX-45U-612 |
Gamma DC Flex Data Center Cabinets 42U 600×1200 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
600 | 1200 | 2160 | 1100 | 1100 | Download |
| 3 | GMC-DC-FLEX-47U-612 |
Gamma DC Flex Data Center Cabinets 42U 600×1200 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
600 | 1200 | 2250 | 1100 | 1100 | Download |
GAMMA DC FLEX DATA CENTER CABINETS (42U-45U-47U ) 800 X 800
| # | Part Number | Description – Standard Configuration – Colour Black RAL 9005 (Welded Structure) | Width (W) mm | Depth (D) mm | Height (H) mm | Depth Rail to (Rail) mm | Static Load (KG) | Download |
|---|---|---|---|---|---|---|---|---|
| 1 | GMC-DC-FLEX-42U-88 |
Gamma DC Flex Data Center Cabinets 42U 800×800 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
800 | 800 | 2020 | 650 | 1100 | Download |
| 2 | GMC-DC-FLEX-45U-88 |
Gamma DC Flex Data Center Cabinets 42U 800×800 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
800 | 800 | 2160 | 650 | 1100 | Download |
| 3 | GMC-DC-FLEX-47U-88 |
Gamma DC Flex Data Center Cabinets 42U 800×800 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
800 | 800 | 2250 | 650 | 1100 | Download |
GAMMA DC FLEX DATA CENTER CABINETS (42U-45U-47U ) 800 X 1000
| # | Part Number | Description – Standard Configuration – Colour Black RAL 9005 (Welded Structure) | Width (W) mm | Depth (D) mm | Height (H) mm | Depth Rail to (Rail) mm | Static Load (KG) | Download |
|---|---|---|---|---|---|---|---|---|
| 1 | GMC-DC-FLEX-42U-810 |
Gamma DC Flex Data Center Cabinets 42U 800×1000 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
800 | 1000 | 2020 | 850 | 1100 | Download |
| 2 | GMC-DC-FLEX-45U-810 |
Gamma DC Flex Data Center Cabinets 42U 800×1000 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
800 | 1000 | 2160 | 850 | 1100 | Download |
| 3 | GMC-DC-FLEX-47U-810 |
Gamma DC Flex Data Center Cabinets 42U 800×1000 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
800 | 1000 | 2250 | 850 | 1100 | Download |
GAMMA DC FLEX DATA CENTER CABINETS (42U-45U-47U ) 800 X 1200
| # | Part Number | Description – Standard Configuration – Colour Black RAL 9005 (Welded Structure) | Width (W) mm | Depth (D) mm | Height (H) mm | Depth Rail to (Rail) mm | Static Load (KG) | Download |
|---|---|---|---|---|---|---|---|---|
| 1 | GMC-DC-FLEX-42U-812 |
Gamma DC Flex Data Center Cabinets 42U 800×1200 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
800 | 1200 | 2020 | 1050 | 1100 | Download |
| 2 | GMC-DC-FLEX-45U-812 |
Gamma DC Flex Data Center Cabinets 42U 800×1200 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
800 | 1200 | 2160 | 1050 | 1100 | Download |
| 3 | GMC-DC-FLEX-47U-812 |
Gamma DC Flex Data Center Cabinets 42U 800×1200 with Removable Solid Split Side Doors, Double door front and back full perforated , 2 pair of 19ˮ Adjustable Pillars , 2 pair of caster Wheels |
800 | 1200 | 2250 | 1050 | 1100 | Download |
OTHER SIZES ARE AVAILABLE UPON REQUEST
